Deco Vac MVac Super Vac central vacuum motor TMTFD6600 (Domel 463.3.606)
Domel part # 463.3.606-2 463.3.606-1
Made by Domel
Trovac part # FMTFD60004 FMTFD66005 TMTFD660
120 volts
14 amps
1700 Watts
Thru-Flow technology
120in H20 suction power
660 Airwatts
117 CFM
1 year warranty
Compatible with central vacuum brands and models:
CycloVac Constructor Hybrid
MVac M45, M47, M65, Tytan, Builder, Constructor
Deco Vac DV700
Hayden Super Vac 60, Super Vac 70
Solution 600T, Solution 600
Data sheet available here
156.95 $CAD
MVac central vacuum motor FM22640001 Lamb Ametek 122264-08
MVac part # FM22640001
Lamb Ametek Motor # 122264-00 122264-08 122264
120 Volts
14.4 Amps
1550 Watts
Thru-Flow technology
2 Stages
5.7" Diameter
141" H20
756 Airwatts
152 CFM
Use carbon brushes part # 8505936-50
Metal bracket and gasket included
Compatible with MVac central vacuum models: MVac M80
1 year warranty
Data sheet available here
169.95 $CAD
Upper motor for MVac central vacuum with 2 motors
Manufactured by Electro-Motor
Electro-Motor part # 6000-12T-T
MVac part # FMCY2001T4 TMCY2001T
120 Volts
8 Amps
91in H20
311 Airwatts
Bypass tangential technology
2 stages (2 Fans)
Motor base diameter 5.67''
Exhaust aluminum tube 1'' 3/4
Compatible with MVac central vacuum models: MVac M110
1 year warranty
207.95 $CAD
MVac HD series HD7515 (AITL7515A) central vacuum motor TMCY0343 FMCY0343021
Trovac MVac part # TMCY0343 FMCY034301
240 Volts
627 Airwatts
Tangential bypass technology
2 stages (2 fans)
5.7in diameter
4.5in tube exhaust extension
Compatible with MVac central vacuum models: MVac HD series HD7515 (AITL7515A)
1 year warranty
235.95 $CAD
MVac HD series HD7515 central vacuum motor TMCY0343 FMCY034302
Trovac MVac part # TMCY0343 FMCY034302
240 Volts
627 Airwatts
Tangential bypass technology
2 stages (2 fans)
5.7in diameter
3.2 in aluminium tube exhaust extension
Compatible with MVac central vacuum models: MVac HD series HD7515
1 year warranty
235.95 $CAD
MVac central vacuum motor replacement TMCY3503 FMCY350302
Part # TMCY3503 FMCY350302
240 Volts
7 amps
N/A Watts
N/A in H20
N/A Airwatts
N/A CFM
Technology bypass tangential
2 stages (2 fans)
5.7in diameter
2.25in aluminium extension tube for exhaust
Compatible with MVac central vacuum models: MVac M120 (Right motor), M12 Charcoal (TUMVC12A) (produced from 2004, to 2008), M12 White (TUMVM12A) (produced from 2003 to 2004)
1 year warranty
249.95 $CAD
MVac central vacuum motor replacement TMCY3503 FMCY350305
Part # TMCY3503 FMCY350305
240 Volts
7 amps
N/A Watts
N/A in H20
N/A Airwatts
N/A CFM
Technology bypass tangential
2 stages (2 fans)
5.7in diameter
1.875in aluminium extension tube for exhaust
Compatible with MVac central vacuum models: MVac M140
1 year warranty
249.95 $CAD
MVac central vacuum motor FM22880001 Lamb Ametek 122288-08
Trovac MVac part # FM22880001
120 Volts
13.8 amps
1450 Watts
141in H20
651 Airwatts
138 CFM
Thru-Flow technology
2 stages (2 fans)
5.7in diameter
Carbon Brushes 8505936-50
Metal bracket and gasket included
Compatible with MVac central vacuum models: MVac M70, MVac M75, MVac M85
1 year warranty
Data sheet available here
259.95 $CAD
MVac central vacuum motor replacement TMCY1001 FMCY100101
Manufactured by Electro-Motor
Electro-Motor part # 6500-288 6600-288
Mvac part # TMCY1001 FMCY100101
120 Volts
12.4 amps
1450 Watts
135.3'' H2O
560 Airwatts
124 CFM
Thru Flow technology
2 stages (2 fans)
5.7in diameter
Carbon Brushes (TMCARB12)
Includes metal bracket and gasket
Compatible with MVac central vacuum models:
M4
M4 Condo White (TUMVM04A) (produced from 2003 to 2004)
M4 Charcoal (TUMC04A) (produced from 2004 to 2008)
M40
M7
M7 Charcoal (TUMVC07A) (produced from 2004 to 2008)
M7 White (TUMVM07A) (produced from 2003 to 2004)
1 year warranty
Data sheet available here
269.95 $CAD
CycloVac MVac central vacuum motor TMCY1051
Trovac CycloVac MVac part # TMCY1051
Replacing 6600-014 Electro-Motor motor
120 volts
14 amps
131in H20
551 Airwatts
118 CFM
Tangential bypass technology
2 stages (2 fans)
5.7in diameter
Compatible with CycloVac central vacuum models: E105, GS700, GX700
Compatible with MVac central vacuum models: MVac M8, M9
1 year warranty
275.95 $CAD
MVac central vacuum motor TMCY1051 FMCY105101
Trovac MVac part # TMCY1051 FMCY105101
Replacing 6600-014 Electro-Motor motor
120 volts
14 amps
131in H20
551 Airwatts
118 CFM
Tangential bypass technology
2 stages (2 fans)
5.7in diameter
3.2in aluminim tube extension exhaust
Compatible with MVac central vacuum models: MVac M8, MVac M8 Special Edition, MVac M9
1 year warranty
281.95 $CAD
MVac central vacuum motor FMCY052102 TMCY0521 with lower fan casing extension
Trovac MVac part # FMCY052102 TMCY0521
120 Volts
14 amps
128in H20
605 Airwatts
131 CFM
Bypass tangential technology
2 stages (2 fans)
5.7in diameter
4.5in aluminium exhaust tube extension
Compatible with MVac central vacuum models: M9
1 year warranty
291.95 $CAD
Lamb Ametek 122483-27 central vacuum motor
Part # 122483-27
Trovac CycloVac MVac Solution part # FM24832702
120 Volts
14.1 amps
1550 Watts
145in H20
659 Airwatts
136 CFM
Tangential Bypass technology
2 stages (2 fans)
6.6in diameter
Use carbon brushes kit part # 8505967-50 Eternity
Compatible with central vacuum brands and models:
Beam 475 ABEAM475A
CycloVac H725, Quartz, HX725
DuoVac Air 50 ADUOAIR50A
HD series HD925
MVac M95
Solution 800
1 year warranty
Data sheet available here
299.95 $CAD
MVac central vacuum lower motor for dual motor systems TMPE0087 FMPE008701
Trovac MVac part # TMPE0087 FMPE008701
240 Volts
Peripheral bypass technology
2 stages (2 fans)
5.7in diameter
Installation bracket included
Compatible with MVac central vacuum models: MVac M140 lower motor
1 year warranty
299.95 $CAD
CycloVac TMCY0521 FMCY052104 Central Vacuum Motor with lower fan casing extension
Trovac CycloVac MVac part # TMCY0521 FMCY052104
120 Volts
14 amps
128in H20
605 Airwatts
131 CFM
Bypass tangential technology
2 stages (2 fans)
5.7in diameter
Aluminium 3.2in tube at exhaust
Compatible with CycloVac central vacuum models: GS310, GS315, E310, E315, H315
1 year warranty
300.95 $CAD
Lamb Ametek 122580-27 central vacuum motor
Part # 122580-27
Trovac CycloVac MVac part # FM25802702
240 Volts
7.3 amps
1650 Watts
149in H20
677 Airwatts
137 CFM
Tangential Bypass technology
2 stages (2 fans)
6.6in diameter
Use carbon brushes kit part # 8505969-50 Eternity
Compatible with central vacuum brands and models:
Beam 4500 ABEAM4500A
MVac HD Series HD7525
CycloVac HD Series ACYHD7525A
CycloVac H725
1 year warranty
Data sheet available here
314.95 $CAD
MVac FM99970001 Lamb Ametek 119997-41 central vacuum motor replacement
Trovac CycloVac MVac part # FM99970001
Lamb Ametek part # 119997-00 119997-41
You can replace this motor with Lamb Ametek122264-00 122684-00 & 122683-00
120 Volts
14.2 amps
1425 Watts
Thru-Flow technology
5.7in diameter
2 stages (2 fans)
133.6" H20 suction power
587 Airwatts
125.8 CFM
Use carbon brushes part # 8505936-50
Compatible with MVac central vacuum models: MVac M50, MVac M80, MVac M80 Special Edition, MVac M80 Gamma, MVac M90 Gamma
1 year warranty
Data sheet available here
319.95 $CAD
MVac lower motor with wires for dual motor systems FMCY200101
Trovac MVac part # TMCY2001 FMCY200101
120 Volts
8 amps
930 Watts
88in H20
312 Airwatts
99 CFM
Peripheral bypass technology
2 stages (2 fans)
5.7in diameter
Includes metal bracket and gasket
Compatible with MVac central vacuum models: MVac M110 lower motor, MVac M10 (TUMVC10A)
1 year warranty
Data sheet available here
323.95 $CAD
CycloVac MVac central vacuum motor replacement TMCY3503 FMCY350301
Part # TMCY3503 FMCY350301
240 Volts
7 amps
N/A Watts
N/A in H20
N/A Airwatts
N/A CFM
Technology bypass tangential
2 stages (2 fans)
5.7in diameter
7in aluminium extension tube for exhaust
Compatible with MVac central vacuum models: M120, M120I
1 year warranty
387.95 $CAD
CycloVac MVac central vacuum motor replacement TMCY3503 FMCY350310
Part # TMCY3503 FMCY350310
240 Volts
7 amps
N/A Watts
N/A in H20
N/A Airwatts
N/A CFM
Technology bypass tangential
2 stages (2 fans)
5.7in diameter
8in aluminium extension tube for exhaust
Compatible with MVac central vacuum models: M120, M120I
1 year warranty
387.95 $CAD
Cyclo Vac left side motor for central vacuum modles TMBP0083
Part # TMBP0083
240 Volts
7 Amps
N/A Watts
N/A in H20
N/A Airwatts
N/A CFM
Tangential Bypass technology
3 stages (3 fans)
5.7in diameter
Aluminium exhaust extension tube included (length N/A)
Compatible with CycloVac central vacuum models: CycloVac European models
1 year warranty
428.95 $CAD
CycloVac MVac HD series HD800 central vacuum motor Lamb Ametek 117549-12
CycloVac MVac Part # FM75491201
Lamb Ametek part # 117549-12
120 volts
14.8 amps
1675 Watts
125in H20
484 Airwatts
115 CFM
Bypass tangential technology
2 stages (2 fans)
7.2in diameter
Use carbon brushes part # 833450-57
2.5in aluminium exhaust tube extension
Compatible with CycloVac MVac central vacuum models: HD series HD800, HD800C, HD820
1 year warranty
Data sheet available here
549.95 $CAD

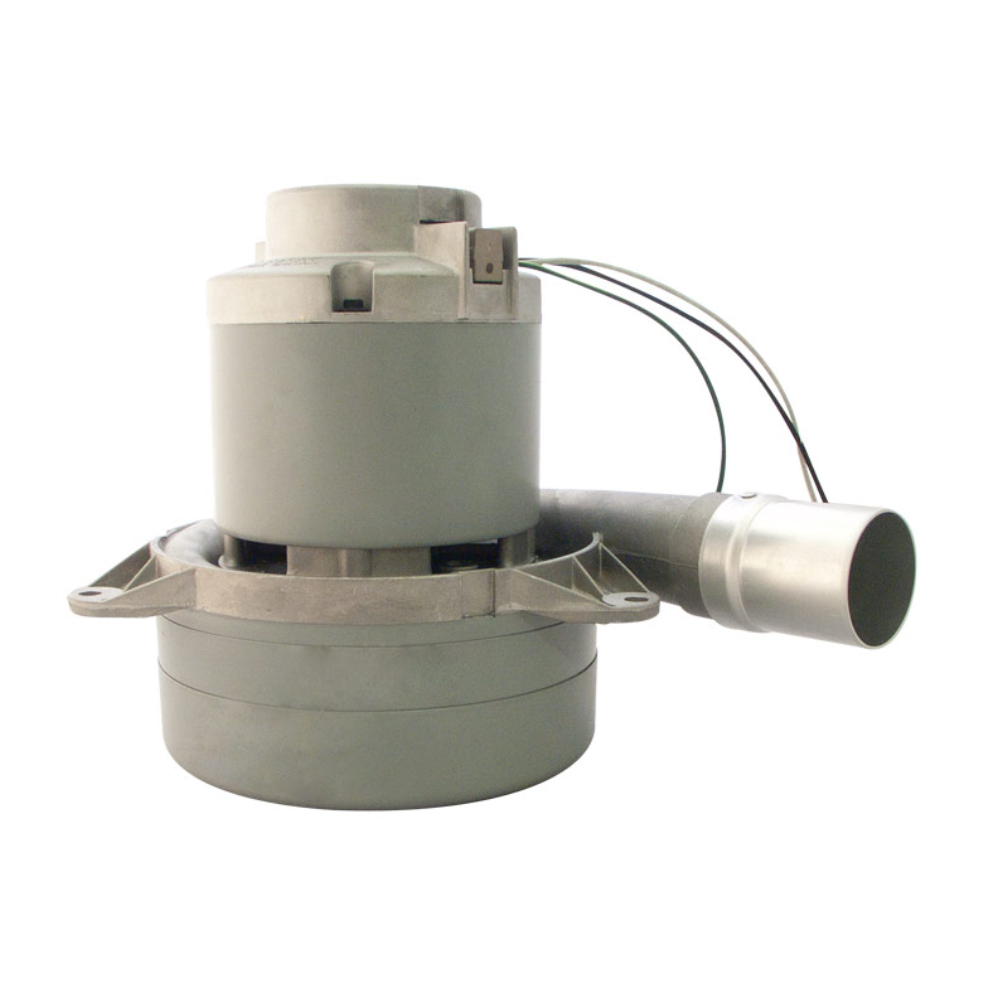

CycloVac MVac Lamb Ametek FM75001201 117500-12 central vacuum motor replacement
Trovac CycloVac MVac part # FM75001201
Lamb Ametek part # 117500-12 7500-12 117500-00 7500-00
120 Volts
14.2 Amps
1605 Watts
Bypass Tangential technology
Lifetime: 1500+ hours
3 Stages (3 fans)
7.2" Diameter
146" H20
530 Airwatts
103 CFM
Use carbon brushes part # 8333450-57
Compatible with CycloVac MVac central vacuum models: HD801, HD825
1 year warranty
Data sheet available here
598.95 $CAD
