Domel Vacuum Cleaner and Central Vacuum Motors

• Domel 496.3.446 4963446 vacuum motor
• Thru Flow technology
• 120 Volts
• 9 Amps
• 850 Watts
• 2 Stages
• 5.7" diameter
• 80" H20
• 100 CFM
• 300 Airwatts
• Uses carbon brushes CAD2470

• Domel 492.3.314 4923314 492.3.314-3 vacuum cleaner motor
• Bypass peripheral discharge technology
• 120 Volts
• 8.3 Amps
• 850 Watts
• 2 Stages
• 5.7" Diameter
• 84" H20
• 93 CFM
• 310 Airwatts
• Uses CAD2470 carbon brushes
• Known to fit vacuum models among others:
• Ghibli 4360801

• Drainvac MOTE-23 central vacuum motor replacement for 500 Airwatts models
• Domel 496.3.430-2 4963430-2 vacuum motor
• Thru-Flow technology
• 120 Volts
• 12 Amps
• 110 Watts
• 2 Stages
• 5.7" Diameter
• 92" H20 (Drainvac specs 115" H20)
• 119 CFM (Drainvac specs 120 CFM)
• 410 Airwatts (Drainvac specs 500 Airwatts)
• Uses carbon brushes CAD2470 Drainvac code BROS-17
• Compatible with Drainvac central vacuum models:
• Drainvac AC1500
• Drainvac AC2500
• Drainvac 1AC9923
• Drainvac 2G20023
• Drainvac 2G20323
• Drainvac C15
• Drainvac C25
• Drainvac S1005
• Drainvac PRO500
• Drainvac PRO1
• Drainvac PRO2
• Drainvac 1PR9923
• Drainvac 2PR9923
• Purvac Piranha

• Domel 496.3.430-2 4963430-2 vacuum motor
• Thru-Flow technology
• 120 Volts
• 12 Amps
• 110 Watts
• 2 Stages
• 5.7" Diameter
• 92" H20
• 119 CFM
• 410 Airwatts
• Uses carbon brushes CAD2470

• Domel 491.3.422 vacuum motor
• Domel part # 491.3.422 4913422
• Bypass tangential technology
• 120 Volts
• 8 Amps
• 800 Watts
• 2 Stages
• 5.7" Diameter
• 81" H20
• 105 CFM
• 302 AW

• Domel 496.3.401-6 4963401-6 vacuum motor
• Domel part # 496.3.401-6
• Thru-Flow technology
• 240 Volts
• 6.5 Amps
• 1100 Watts
• 2 Stages
• Diameter 5.6"
• 90" H20
• 117 CFM
• 420 Airwatts
• Known to fit some Drainvac European central vacuum models (MOTE-21 MOTE21)

• Domel 463.3.205-7 vacuum motor 2505134
• Part # 463.3.205-7 2505134 MOJVT1
• Replacing Domel 463.3.207-12
• Technology Thru-Flow
• 120 Volts
• 12 amps
• 1440 Watts
• 1 stage
• 4.25" diameter
• 123" H20
• 115 CFM
• 500 Airwatts
• 1 year warranty
• Compatible with these vacuum cleaner models: Ghibli T1 Johnny Vac JVT1

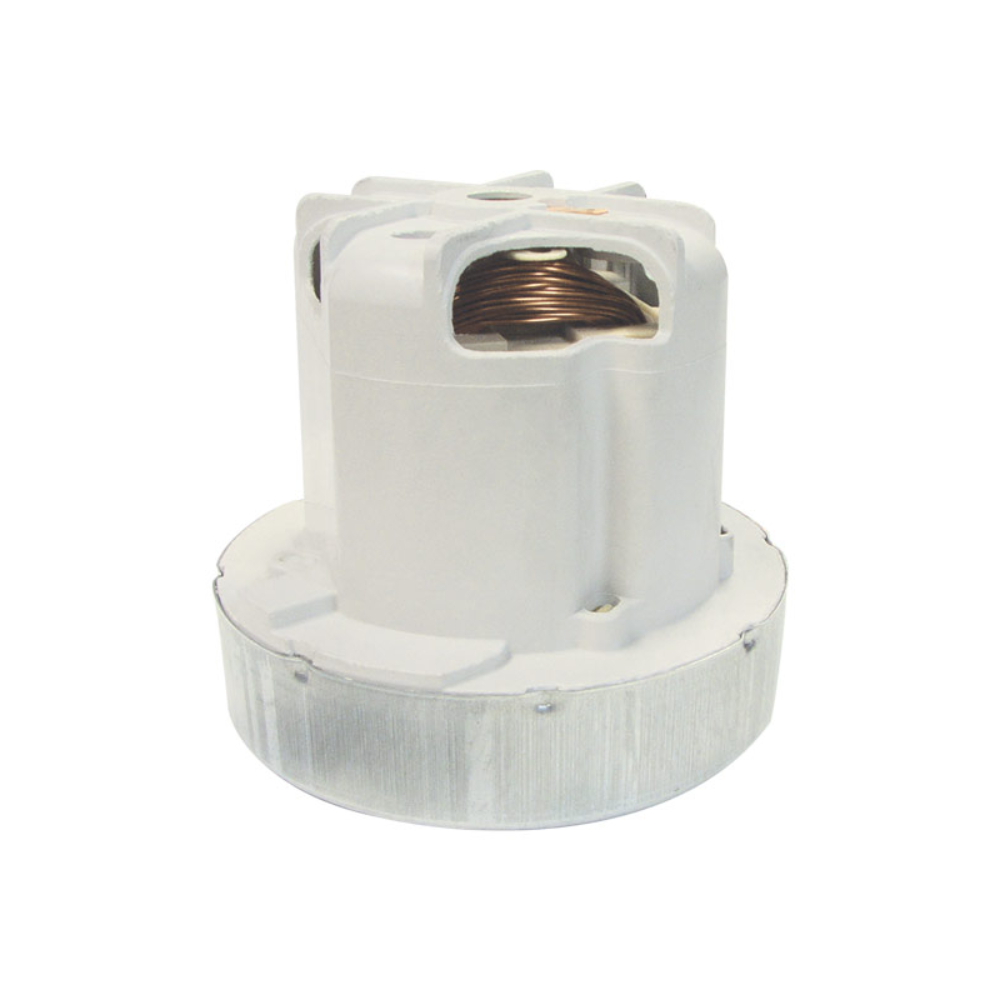

• Domel Central Vacuum Motor 463.3.605-10
• Replacing 440.3.605 and 440.3.605-3 motors from Domel
• Domel part # 463.3.605-10
• Thru-Flow technology
• 120 Volts
• 12 Amps
• 1400 watts
• 4.7in diameter
• 122" H20 waterlift
• 121 CFM
• 650 Airwatts
• Compatible with Eureka Zuum Z-Series, ECV5000, ECV5200, ECV5300B, ECV5400, ECV5400B, ECV5500, ECV5600B
• Compatible with Nutone central vacuum models 550, 650, 700
• Compatible with Broan central vacuum models BQ550, BQ650, BQ700
• Compatible with Venmar central vacuum models 550VF1, 650VF1, 700VF1
• Also compatible with other models from other brands

The Domel 463.3.605 is the official replacement motor for Venmar Central Vacuums. The Domel 440.3.605 and the Domel 440.3.607 have been discontinued and are no longer available. The new replacement motor is more reliable and significantly more stable.

• THIS MOTOR IS NOW DISCONTINUED AND OFFICIALLY REPLACED BY THE DOMEL 463.3.605-10
• Venmar central vacuum motor replacement for all models
• This motor is the official replacement for motors # 440.3.605 and 440.3.607
• Venmar part # S10941419
• Domel part # 463.3.605 (463.3.605-3 463.3.605-5 463.3.605-10)
• Thru-Flow technology
• 120 Volts
• 12 Amps
• 1400 watts (1700 watts peak)
• 4.7in diameter
• 122" H20 waterlift
• 121 CFM
• 650 Airwatts
• Included with the motor:
• 1 new motor fitting
• 2 Gaskets
• 4 bolts
• 1 Ground Wire
• Compatible with Venmar:
• Venmar 550VF1
• Venmar 600VF
• Venmar 650VF1
• Venmar 700VF1

• Domel vacuum motor 491.3.752-3
• Domel part # 491.3.752-3
• Bypass Tangential Technology
• 120 Volts
• 13.2 Amps
• 1400 Watts
• 3 Stages
• 5.7" Diameter
• 123" H20
• 91 CFM
• 428 Airwatts

• Domel 463.3.606-2 central vacuum motor replacement
• Mvac CycloVac Hayden Super Vac Deco Vac motor part # FMTFD66004 TMTFD600
• Domel part # 463.3.606-2
• Thru-Flow technology
• 120 volts
• 12.5 amps
• 1510 Watts
• 1 stage
• Diameter 4.7in (120mm)
• 120" waterlift suction power
• 117 CFM
• 610 airwatts
• Thru-Flow technology
• Installation metal Ninja bracket included
• Compatible with central vacuum brands and models:
• Beam 205 ABEAM205A
• MVac M43
• MVac M45
• MVac M47
• MVac M65
• MVac Tytan
• Deco Vac DV600
• Cyclo Vac Contractor series
• Solution 600T
• Solution 600

• Domel vacuum cleaner motor 462.3.560-23
• Trovac Part # TMTFD560
• 240 Volts
• 6.75 amps
• 1520 Watts
• 117in H20 suction power
• 600 Airwatts
• 122 CFM
• Thru-Flow technology
• 1 stage (1 fan)
• 1 year warranty

• Drainvac MOTE-29 MOTE29 central vacuum motor replacement (Domel 496.3.719)
• Drainvac part # MOTE-29 MOTE29
• Domel part # 496.3.719
• Thru-Flow technology
• 240 volts
• 1800 Watts
• 2 stages
• 5.7in diameter
• 120" H20
• 138 CFM
• 620 Airwatts
• Compatible with Drainvac AC3200 central vacuum central vacuums with parallel thru-flow motors only

• Drainvac MOTE-38 #3722 central vacuum motor replacement  (Domel 496.3.722)
• Drainvac part # MOTE-38 (An old version of this motor used the same part # MOTE-38. The old version of this MOTE-38 is not available anymore.)
• Domel part # 496.3.722
• Carbon brushes part # BROS-42
• 120 Volts
• 11 Amps
• 2 Stages
• 5.7" Diameter
• 125" H20
• 146 CFM
• 600 AW
• Compatible with Drainvac central vacuum models:
• Drainvac AC1600
• Drainvac AC2600
• Drainvac S1006
• Drainvac Generation 2 (G2) 2G20038
• Drainvac PRO1 1PR9938
• Drainvac PRO2 2PR9938

• Drainvac central vacuum motor MOTE-22 MOTE22 #3422 (Domel 491.3.422)
• Drainvac part # MOTE-22 MOTE22 #3422
• Domel part # 491.3.422 4913422
• 120 Volts
• 8 Amps
• 800 Watts
• 2 Stages
• 5.7" Diameter
• 81" H20
• 105 CFM
• 302 AW
• Use Drainvac carbon brushes CAD2470
• Compatible with Drainvac central vacuum models:
• Drainvac Génération 2 (G2) 2G20022
• Drainvac Summum 2SM0022
• Drainvac G2 2X3

• Beam Central Vacuum Motor  Domel 491.3.725
• Beam Part # 140373 / 140431
• Beam New Generation Part # FMBPD65001
• 120 Volts
• 15.8 Amps
• 1700 Watts
• Tangential bypass technology
• 2-stage (2 fans)
• Diameter: 5.7"
• 115.6" H2O suction power
• 665 Airwatts
• 142 CFM airflow
• Compatible with Beam central vacuum models:
• Beam SC275
• Beam SC375
• Beam 345 (ABEAM345A) New Generation Manufactured by Trovac Industries
• 1-year warranty

• Drainvac MOTE-32 #3707 central vacuum motor (Domel 491.3.707-4)
• Drainvac part # MOTE-32 MOTE32 #3707
• Domel part # 491.3.707-4 49137074
• Bypass tangential technology
• 240 Volts
• 6.8 Amps
• 2 Stages
• 5.7" Diameter
• 86" H20
• 135 CFM
• 520 Airwatts
• Use carbon brushes BROS-24 BROS24 L83F13
• Compatible with Drainvac central vacuum models:
• Drainvac AC-3200 AC3200
• Drainvac Generation 2 (G2)  2G20032
• Drainvac Summum 2SM0032
• Also compatible with Purvac 2PV1236-C

• Domel 499.3.701-3 central vacuum motor
• Domel part # 499.3.701 499.3.701-3 (300371)
• Beam and Electrolux part # 140371
• Tangential bypass technology
• 120 Volts
• 13 amps
• 1400 Watts
• 7.2in diameter
• 2 stages (2 fans)
• 137" H20
• 125 CFM
• 640 Airwatts
• 1 year warranty
• Compatible with central vacuum models:
• Beam SC298, Beam SC298A, Beam SC298C, Beam SC398, Beam SC398A, Beam SC398B, Beam SC398C, Beam SC3980A, Beam Smart SMP800
• Electrolux PU3900C LCD, Electrolux BMP3000 PU LCD
• Honeywell 4B-H803
• PowerStar PS805

• Beam and Eureka central vacuum motor 140506
• Beam part # 140506
• Domel part # 4503201
• Made by Domel
• Replace motor Domel 450.3.204, 450-3-204, 140434, 140347, 1128780-22, 112878-22
• 120 volts
• Thru-Flow technology
• 1 stage (1 fan)
• 5.3" diameter
• Compatible with central vacuum models: Beam BM185, BU185, Beam 145, Eureka CV100A
• 1 year warranty

• Domel vacuum pump motor 462.3.457-9
• Thru-Flow technology
• Conic base
• 120 volts
• 10 amps
• 1200 Watts max
• 1 stage (1 fan)
• Diameter 5.39in (137mm) x Height 4.95in (125.6mm)
• 96.8H20 waterlift suction power
• 99.6 CFM
• 455 Airwatts
• Replacing Domel motor 462.3.354

• Drainvac central vacuum motor MOTE-28 MOTE28 #3720 (Domel 496.3.720-2)
• Replacing Domel part # 496.3.72E 496.3.720 4963720
• Drainvac aprt # MOTE-28 MOTE28
• Domel part # 496.3.720-2
• Thru-Flow technology
• 120 Volts
• 14.4 Amps
• 1400 Watts
• 2 Stages
• 5.7" diameter
• 118" H20 (Drainvac Official Specs 140" H20)
• 144 CFM (Drainvac Official Specs 133 CFM)
• 560 AW (Drainvac Official Specs 700 Airwatts)
• Compatible with Drainvac central vacuum systems:
• Drainvac AC1630
• Drainvac AC2630
• Drainvac 1AC9928
• Drainvac S1007
• Drainvac 2G20028
• Drainvac 2SM0028

** Please note that Drainvac is replacing the MOTE-28 #3720 by MOTE-58. The MOTE-28 is still available.**

• Domel 496.3.720-2 central vacuum motor
• Replacing Domel part # 496.3.72E 496.3.720 4963720
• Domel part # 496.3.720-2
• Thru-Flow technology
• 120 Volts
• 14.4 Amps
• 1400 Watts
• 2 Stages
• 5.7" diameter
• 118" H20
• 144 CFM
• 560 AW
• Compatible with some Drainvac central vacuum systems
